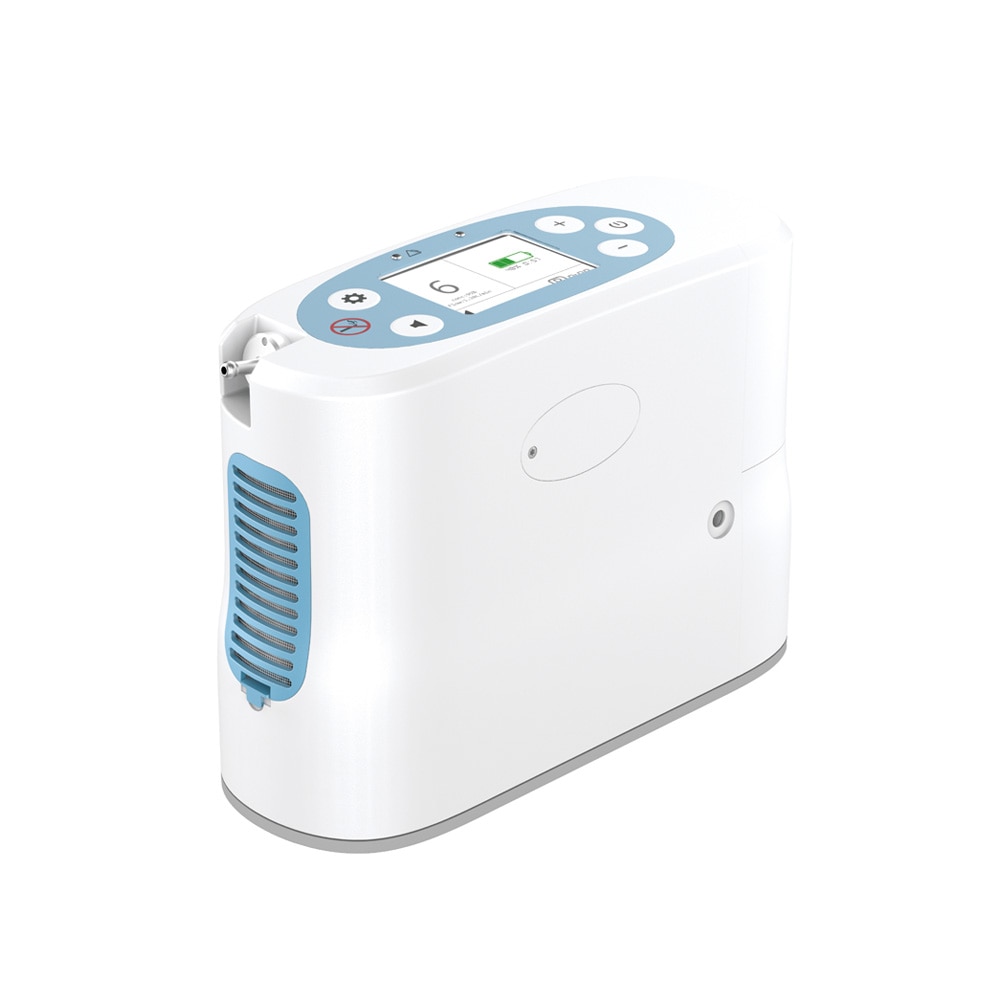

P2-E6 Portable Oxygen Concentrator

FEATURES:
• Compact & lightweight.
• Battery duration up to 5.4 hours on setting 1.
• High efficiency, low noise. Excellent heat dissipation.
• High absorption sieve bed.
• Includes AC/DC Car Charger.
• Conforms to all applicable FAA acceptance criteria for POC carriage and use on board aircraft.

SPECIFICATIONS:
Size: 8.7” x 3.4“ x 6.3”
Weight: 4.37lbs
Warm up time: 2 minutes
Settings: Six Flow Settings (1-6)
Oxygen Concentration: 90%-3%/+6%

Oxygen Concentration Sensors
- Low oxygen concentration < 87%
- Incorrect concentration: < 50%
- Concentration sensor error alarm

Alarms
- Power failure/ High and low temperature
- Low oxygen concentration/ Low battery
- High and low pressure /Sieve bed replacing

AC Power Supply: Input 100-240v, 50-60hz (auto sensing to allow for worldwide use)

DC Power Supply Input: 11-16V, Output 19V 6.3A
Rechargeable Battery: 14.4V
Battery Rated Capacity: 6.7Ah
Display Screen: 2.8”
Battery: 6700mAh, duration up to 5.4 hours on setting 1.
Approx. 4 hours charge time with AC.
Operation: Simple control functions and easy-to-read LCD display
Use: Designed for 24/7 use
