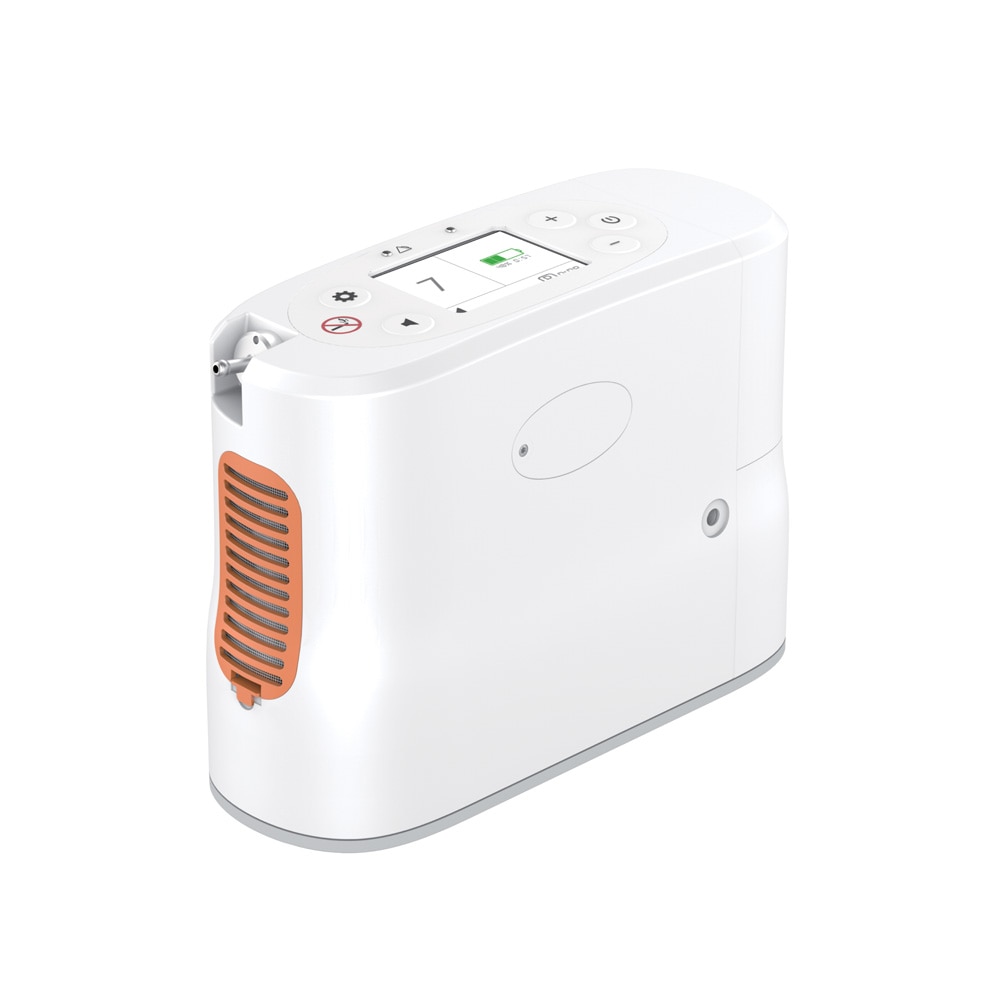

P2-E7 Portable Oxygen Concentrator

• Compact & Lightweight.
• Battery Duration up to 6 hours on Setting 1.
• High Efficiency, Low noise. Excellent Heat Dissipation.
• High Adsorption Sieve Bed.
• Includes AC/DC Car Charger.
• Conforms to all applicable FAA compliant criteria for POC carriage and use on board aircraft.



Specifications:
Size: 8.7” x 3.4“ x 6.3”
Weight: 4.37lbs
Warm-up Time: 2 minutes
Settings: Seven Flow Settings (1-7)
Maximum Oxygen Output: 1400 ml/min
Oxygen Concentration: 90%-3%/+6%

Oxygen Concentration Sensors
• Low oxygen concentration <87%
• Incorrect Concentration: <50%
• Concentration Sensor Error Alarm

Alarms
• Power failure/High and Low Temperature
• Low Oxygen Concentration/Low Battery
• High and Low Pressure /Sieve Bed Replacing


AC Power Supply: Input 100-240v, 50-60hz (auto sensing to allow for worldwide use)
DC Power Supply Input: 11-16V, Output 19V 6.3A
Rechargeable Battery: 14.4V
Battery Rated Capacity: 6.7Ah
Display Screen: 2.8”
Battery: 6700mAh, duration up to 6 hours on setting 1.
Approx. 4 hours charge time with AC.
Operation: Simple control functions and easy-to-read LCD display
Use: Designed for 24/7 use

Manual | Spec Sheet | Bench Test | PDAC | Patient FAA AIr Travel Compliance Letter
