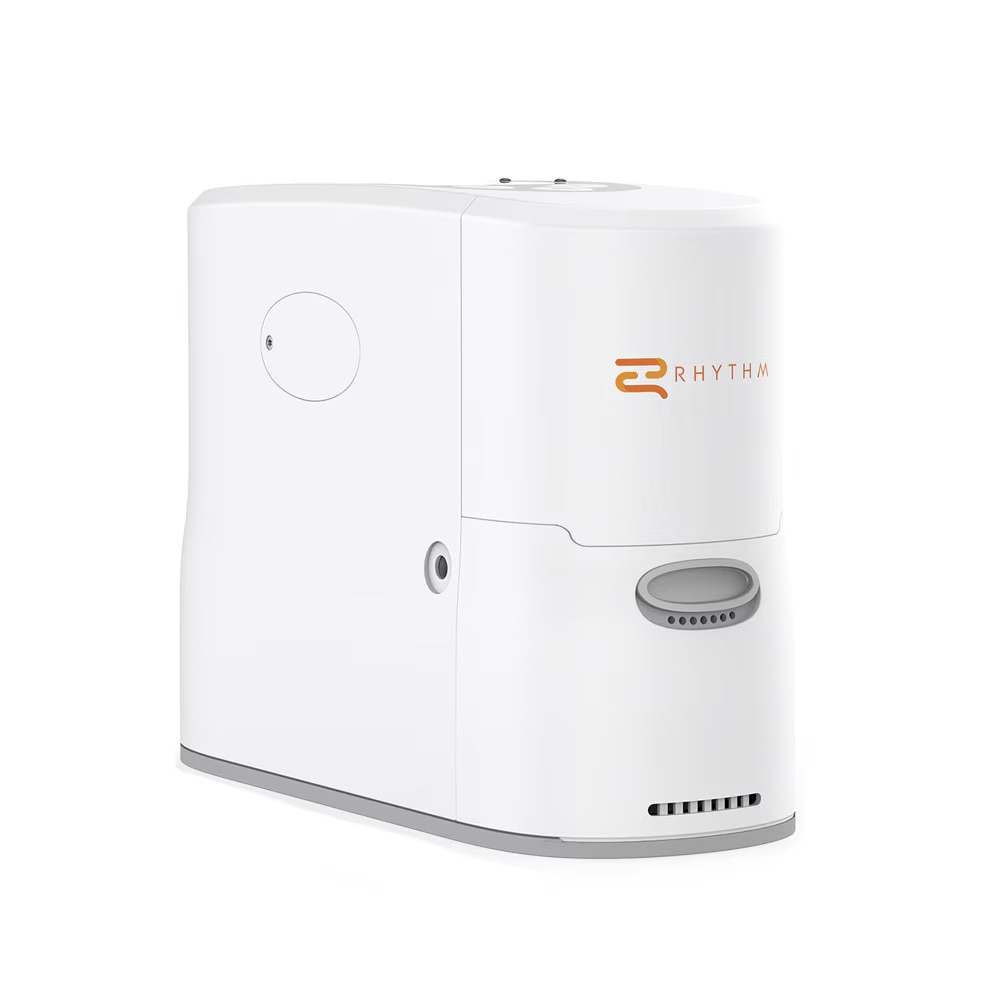

TOC3: Transportable Oxygen Concentrator
Finally, a Transportable Oxygen Concentrator Built for the Realities of Care.
The TOC3 was designed to fill the industry’s biggest gap: a true hospital-to-home solution that supports effortless discharge and enables worry-free, 24/7 oxygen use—whether your patient is flying, walking, or sleeping. With continuous flow up to 3 LPM, pulse settings up to 10, and best-in-class battery performance, the TOC3 delivers the freedom and reliability today’s oxygen users deserve.
TOC3 Specifications Settings 3 LPM Continuous Flow & 10 Pulse Dose Delivery Settings Size 11.1” x 6.7” x 15” Product Weight 17.2 lbs (with battery) Warm up time 5 Minutes Oxygen Concentration 90%-3%/+5.5% Respiratory Rate 10 to 40 BPM Display Screen 2.8" Color LCD Operation Simple Controls, Easy-to-Read LCD Display Use Up to 24/7 Use AC Input 100 to 240V AC 50 to 60 Hz Rechargeable Battery 14.4V DC Battery Duration Up to 6.6 hours on Setting 1 (Pulse Dose) Accessories Bag & Cart Included for Convenient Transport HCPCS E1390 and E1392 Warranty Device: 3 Years Sieve Bed: 2 Years Battery: 1 Year

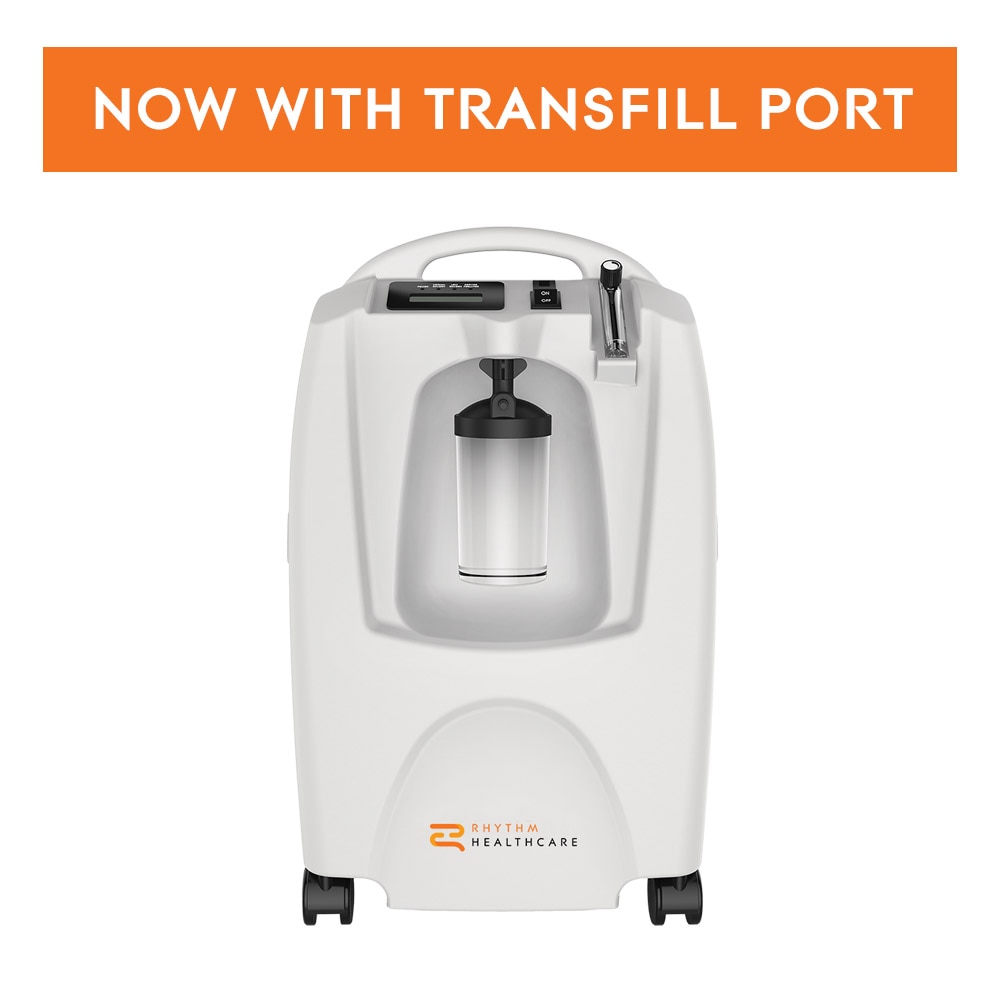

LM5BA: 5L Stationary Oxygen Concentrator User Friendly Control Panel Alarms for Temperature, Oxygen Purity, High and Low Pressure, Power Failure, and Blockage Quick & Easy Maintenance Low Noise Level High Output Pressure Optional Transfill Rack
LM5BA Specifications Product Weight 35.25 lbs Power Supply AC115V/60Hz / AC230V 50HZ Power Consumption <365W Output Pressure 40–60 Kpa Oxygen Flow 5L Oxygen Purity 93% ± 3% HCPCS E1390 Warranty Three Years

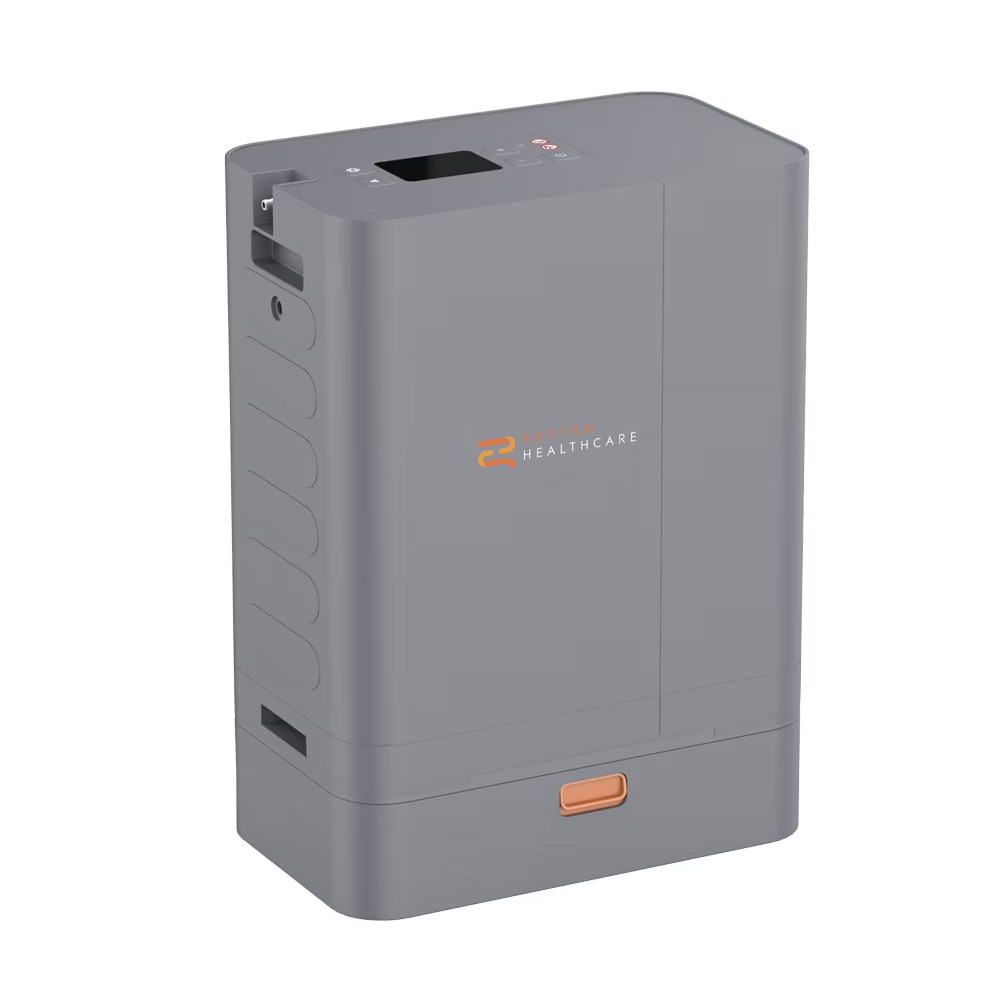

P2: 5 Setting Portable Oxygen Concentrator Compact & Lightweight Battery Duration up to 5 Hours on Setting 1 High Efficiency, Low noise. Excellent Heat Dissipation High Adsorption Sieve Bed Includes AC/DC Charger Conforms to all applicable FAA compliant criteria for POC carriage and use on board aircraft P2 Specifications Size 3.3” W x 8.7” D x 6.3” H Weight 4.37 lbs Warm up time 2 minutes Settings Five Flow Settings (1-5) Maximum Oxygen Output 1,000 ml/min Oxygen Concentration 87% - 96% Oxygen Sensors Low Concentration: <87%, Incorrect Concentration: <50%, Concentration Sensor Error Alarm Alarms Power Failure, Temperature, Low Oxygen, Battery, Pressure, Sieve Bed Replacment AC Power Supply 100-240v, 50-60hz (Auto Sensing for Worldwide Use) DC Power Input Input 11-16V, Output 19V 6.3A Battery 6800mAh, 14.4V, up to 5 hours on Setting 1. Approx. 4 hours charge time with AC. Display Screen 2.8" Operation Simple control functions and Easy-to-Read LCD display Use Designed for 24/7 use HCPCS E1390, E1392 Warranty Device: 3 Years Sieve Bed: 2 Years Battery: 1 Year
Battery Duration Chart Setting Duration 1 5h 2 4h 3 3h 4 2h 14min 5 1h 50min
