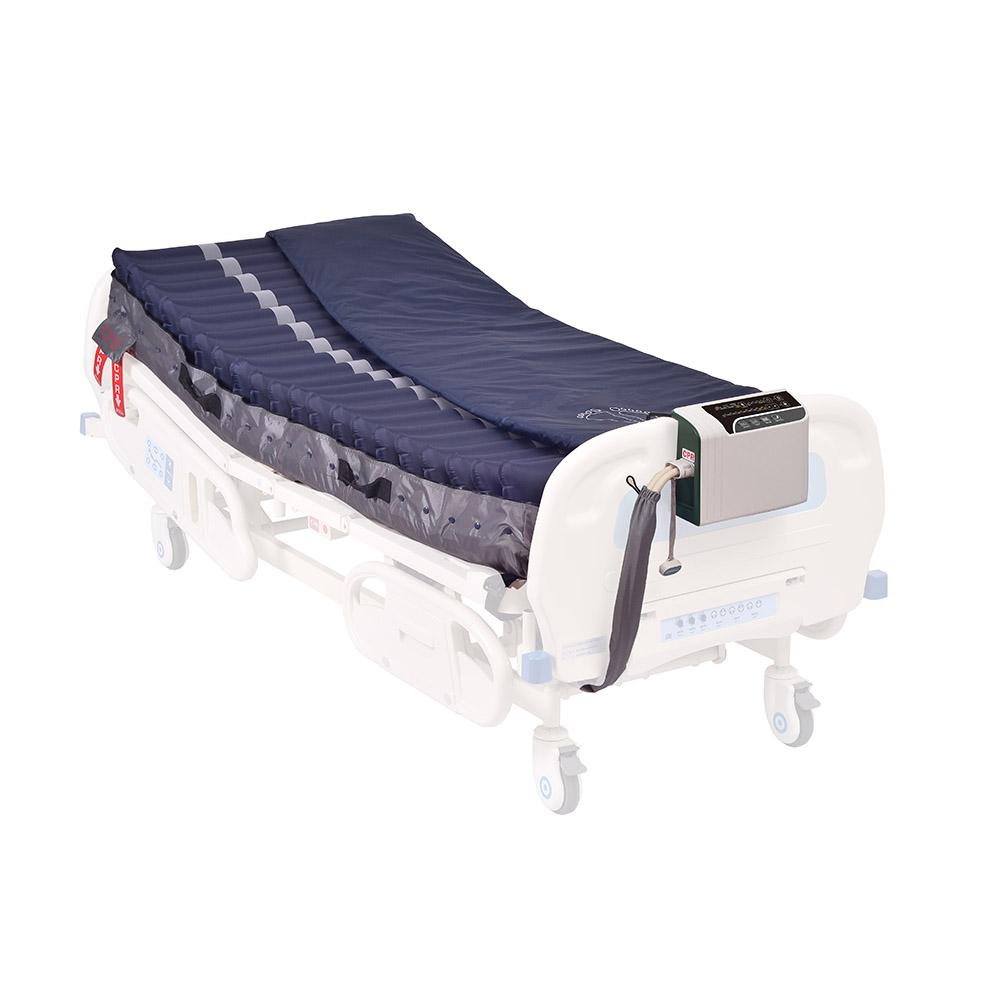

SoftCaire DX (delux system)

Alternating Pressure with Cell on Cell Design Support

Our Premium Offering, the “Delux” includes 20, 8” alternating air cells made of durable TPU, with Cell-on-cell Design for Effective Pressure Redistribution, Power Outage Protection and Patient Transport

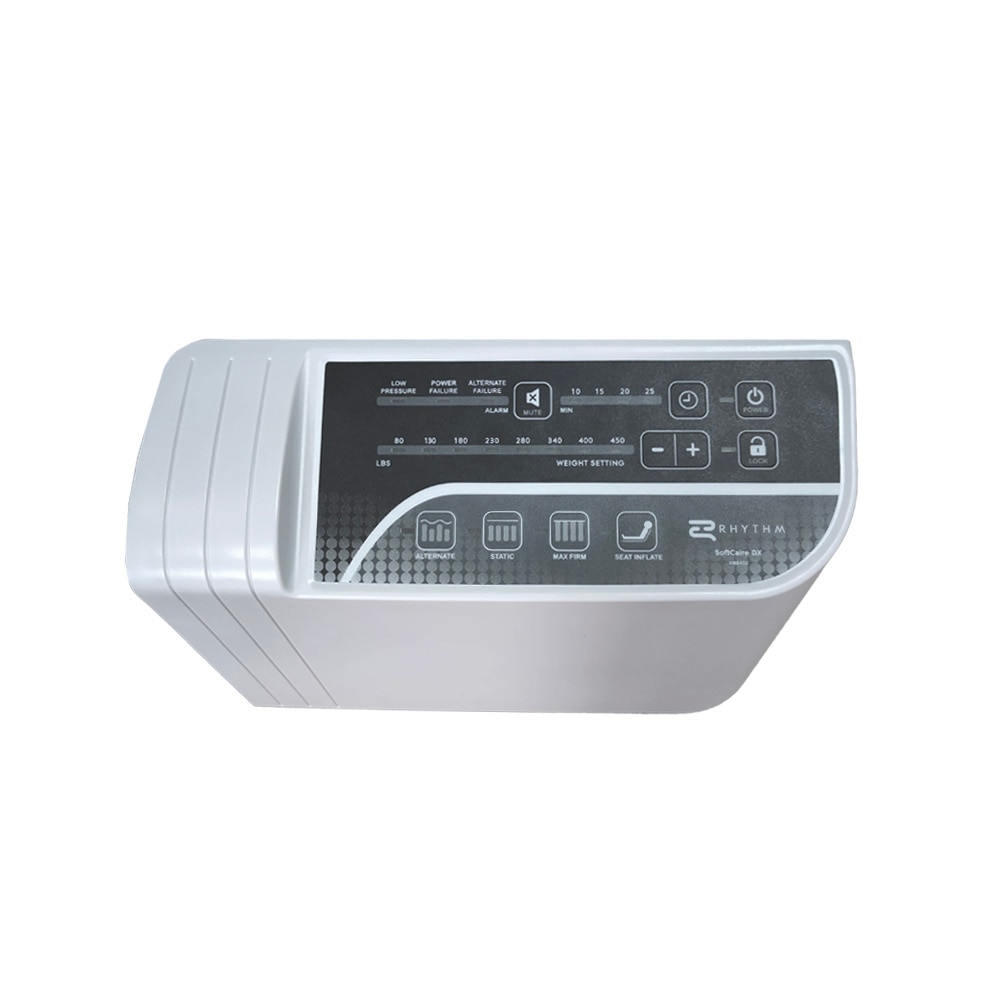

Premium Digital Pump

8 lpm Air Output
Auto-Sensing Tech Adjusts Air Pressure to Patient’s Weight
Adjustable Cycle Time, Seat-Inflate, Static and Max-Firm Modes

Cover

2-Way Stretch, Top Cover is Low Shear, Water-Resistant, Vapor-Permeable, and Anti-Microbial

Quick Connector with Cap

Ensures Mattress Remains Inflated during power outage or patient transport

CPR Function

Allows for One-Handed, Rapid Deflation in case of medical emergencies or to facilitate rapid disassembly

Pillow Function

Head Zone Comprised of Three Fully Inflated Static Air Cells to provide patient comfort

Heel Function

Provides Single Cell Deflation to Float Vulnerable Heels

Spring-Loaded, Anti-Kink Tubes

Enhances experience and reduces service calls

Specifications:

Pump:
Weight Setting Control: Digital
Dimension: 12.2”L x 4.9”W x 8.25”H
Weight: 5.5 lbs
Air Output: 9 liter/min
Case Material: Flame Retardant Abs
Pressure Range: 20-55 mmHg
Cycle Time: 10/15/20/25 min
Power Supply: 120V/60 Hz
Power Cord Length: 14' 9"

Mattress:
Inflated Dimension: 80”L x 35”W x 8”H
Alternating: A/B Alternating
Structure: 20 x 8” Air Bladders
Cover Material: Nylon/PU Quilted with Zipper
Cell Material: Nylon/TPU
Base Material: Durable Nylon/PVC 840D
Maximum Weight Capacity: 450 lbs
Flame Retardant Standards: BS6807 Crib 5/ BS7175 Crib 5

Manual | Spec Sheet | PDAC
